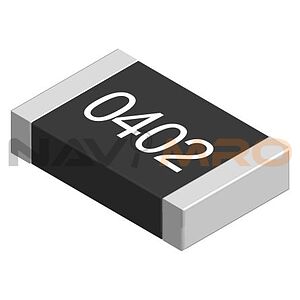

Vishay 10kΩ, 0402 Thick Film SMD Resistor ±1% 0.063W - CRCW040210K0FKED

특징
Vishay 10kΩ, 0402 Thick Film SMD Resistor ±1% 0.063W - CRCW040210K0FKED

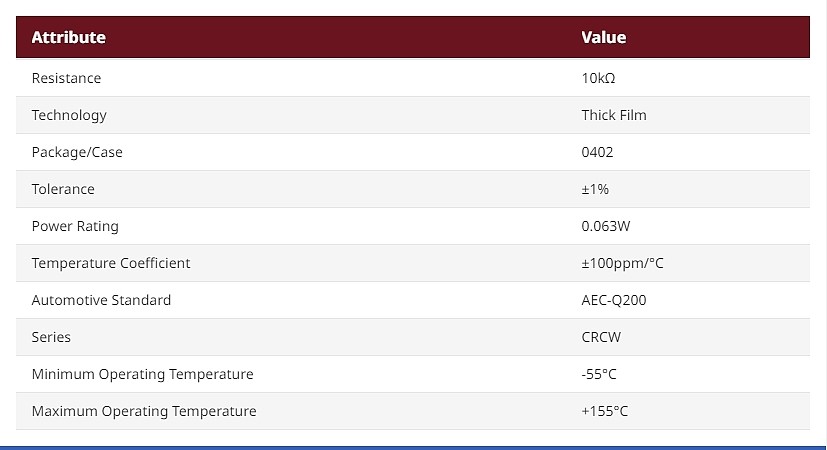

Resistance = 10kΩ Technology = Thick Film Package/Case = 0402 (1005M) Tolerance = ±1% Series = CRCW Minimum Operating Temperature = -55°C Maximum Operating Temperature = +155°C 0402 Format CRCW Series - 1% (Paper T/R) (10kΩ to 10MΩ). CRCW chip resistors from Vishay are a thick film surface mount solution. They are constructed from metal glaze on a high quality ceramic. With excellent stability of ->R/R ->% for 1000 hours at +70°C, these thick film resistors are reliable. CRCW chip resistors feature pure tin solder contacts enabling lead (Pb-Free) and lead containing soldering processes. Features and benefits:. 0402 package size. Available with resistance values ranging from 0 Ω to 10 MΩ. Protective overglaze. Excellent stability (->R/R ->1 % for 1000h at +70 °C). Wide operating temperature range of -55°C to +155°C. ±1% tolerance. Product Application Information. These SMD resistors are suited to a wide range of applications include telecommunication equipment, cameras and computers. With an AEC-Q200 qualification, these SMD resistors are also suitable for automotive applications. CRCW chip resistors are AEC-Q200 qualified and suitable for automotive applications.
