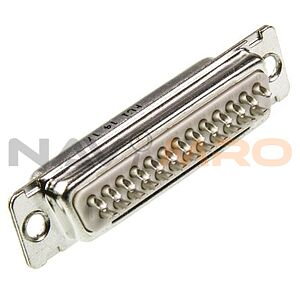

Amphenol ICC 25 Way Panel Mount D-sub Connector Socket, 2.76mm Pitch

특징
Amphenol ICC 25 Way Panel Mount D-sub Connector Socket, 2.76mm Pitch

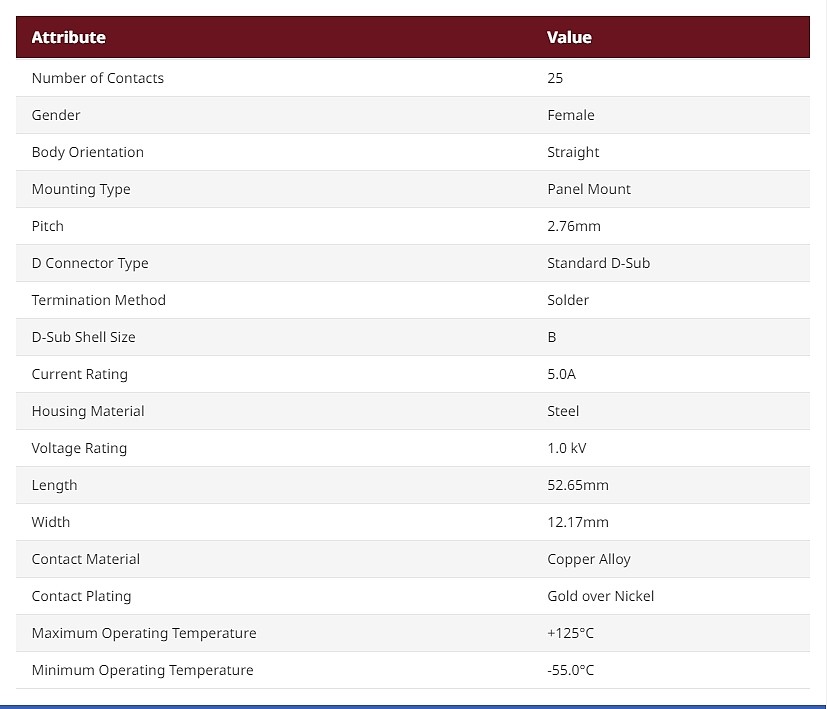

Number of Contacts = 25 Gender = Female Body Orientation = Straight Mounting Type = Panel Mount Pitch = 2.76mm D Connector Type = Standard D-Sub Termination Method = Solder Current Rating = 5.0A Housing Material = Steel Voltage Rating = 1 kV ac Length = 52.65mm Width = 12.17mm Contact Plating = Gold over Nickel Maximum Operating Temperature = +125°C For crimp contacts (for Sub-D connectors, for example ; 673-4897) 673-4897) , see ; 673-7856 673-7856 for example. For dust caps, see ; 673-4967 673-4967 for example, Hoods, see ; 740-1270 740-1270 and for fixing screws, see ; 673-4945 673-4945 for example. Connectors for Soldering to Wires. These Sub-D connectors have been designed for various uses in the following fields: IT, telematics, telecommunications and industrial electronics. They offer a full range of connection options (soldering, straight and angled pins). Rolled cut contacts.
