Vishay 220Ω 5% 200W High Power Wirewound Adjustable Resistor

특징
Vishay 220Ω 5% 200W High Power Wirewound Adjustable Resistor

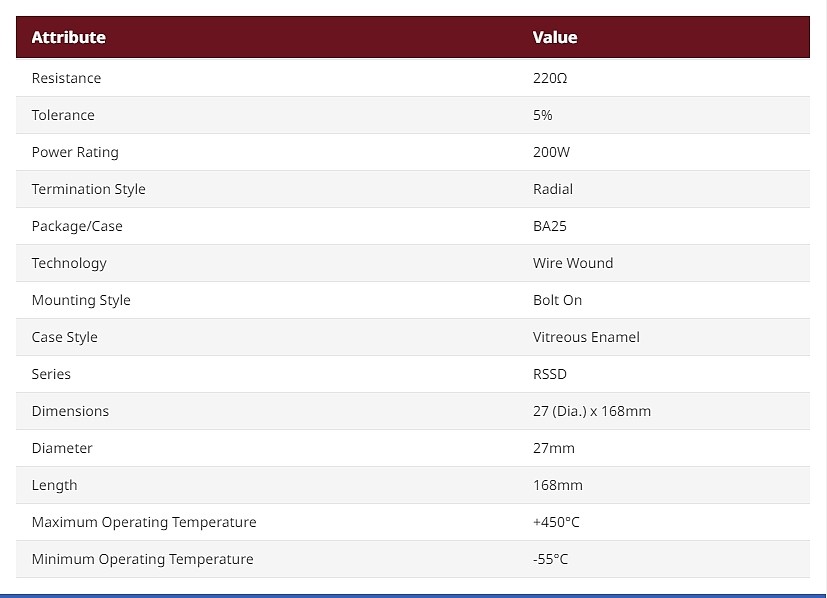

Resistance = 220Ω Tolerance = 5% Power Rating = 200W Termination Style = Radial Package/Case = BA25 Technology = Wire Wound Mounting Style = Bolt On Case Style = Vitreous Enamel Series = RSSD Dimensions = 27 (Dia.) x 168mm Diameter = 27mm Length = 168mm Maximum Operating Temperature = +450°C Minimum Operating Temperature = -55°C The mounting brackets are sold separately: SN ; 7885167 7885167 for 10 x 50mm ( 25W ); SN ; 7885151 7885151 for 20 x 117mm ( 100W ); SN ; 7885154 7885154 for 25 x 168mm ( 200W ); SN ; 7885160 7885160 for 30 x 250mm ( 280W ). 25 Watt to 280 Watt RSSD Series. RSSD medium and high power resistors are noted for their ability to withstand heavy transient and severe shock and vibration conditions. They complement the ohmic range of Vishay styles RW, RWST and RA in the low value area, and can be tapped by means of adjustable collars. Standard RSSD resistors have a single adjustable collar. Features:. High power rating: 16 W to 600 W at 25 °C Heavy overloads 10 Pn 15 s ->1 % Low ohmic values 0.10 Ω available High long-term stability drift ; 1.5 % after 1000 h Excellent withstanding of thermal shock Mechanical strength Fire proof
