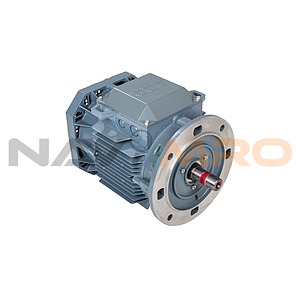

Squirrel Cage Motor AC Motor, 4 kW, IE3, 3 Phase, 4 Pole, 400 V, 415 V, 690 V, Flange Mount Mounting (3GAA112320-BDK)

특징
ABB Squirrel Cage Motor AC Motor, 4 kW, IE3, 3 Phase, 4 Pole, 400 V, 415 V, 690 V, Flange Mount Mounting

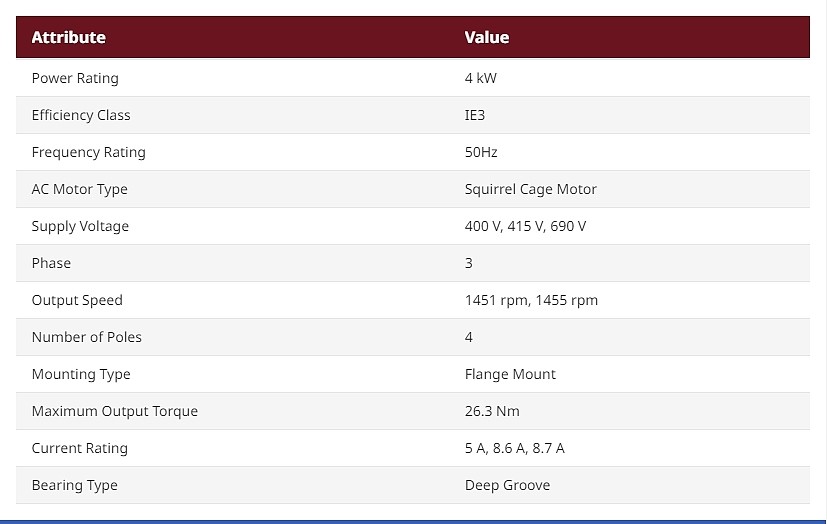

Power Rating = 4 kW Frequency Rating = 50Hz AC Motor Type = Squirrel Cage Motor Supply Voltage = 400 V, 415 V, 690 V Phase = 3 Output Speed = 1451 rpm, 1455 rpm Number of Poles = 4 Mounting Type = Flange Mount Current Rating = 5 A, 8.6 A, 8.7 A Bearing Type = Deep Groove ABB Squirrel Cage AC MotorThe ABB 3-phase squirrel cage flange mounted AC motor can rotate in both directions. It is a 4-pole motor with an electrical rating of 400V, 415V and 690V supply voltage and 5A, 8.6A and 8.7A current with 4kW power at 50Hz frequency. The output speed of this motor is 1451rpm and 1455rpm.Features and BenefitsAmbient temperature is 40°C Deep groove bearing Maximum output torque is 26.3NmApplicationsIndustrial applicationsCertificationsIC411 rated IE Class IE3 IP55 rated
