Telemecanique Sensors OsiSense XC Series Plunger Roller Lever Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac (XCKN2121P20)

특징
Telemecanique Sensors OsiSense XC Series Plunger Roller Lever Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac

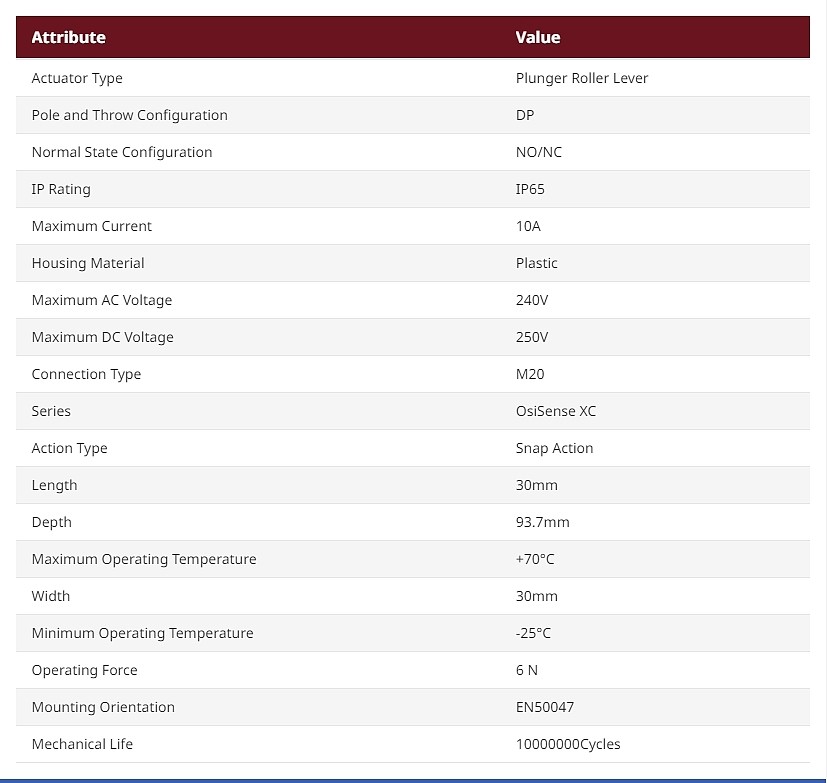

Actuator Type = Plunger Roller Lever Pole and Throw Configuration = DP Normal State Configuration = NO/NC IP Rating = IP65 Maximum Current = 10A Housing Material = Plastic Maximum AC Voltage = 240V Maximum DC Voltage = 250V Connection Type = M20 Series = OsiSense XC Action Type = Snap Action Length = 30mm Maximum Operating Temperature = +70°C Operating Force = 6 N Telemecanique Limit Switches. Introducing Telemecanique XCKN range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. Telemecanique OsiSense XCKN series limit switches are a compact design with a wide variety of actuator heads available. The XCKN series is a monolithic plastic limit switch dedicated to repetitive action. How does a limit switch work->. The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.
